Description
Jesco MEMDOS LB dosing pumps are used when the integration of the pump into controls or control circuits is required. This is achieved via the sturdy tappet drive with manual or automatic capacity adjustment, the conveyed media such as acids, lyes, coagulants and flocculants are dosed reliably and precisely. To adapt the dosing capacity, either the stroke length can be adjusted mechanically or the speed of the three-phase motor can be regulated by means of a separate frequency converter. On request, the MEMDOS LB pumps can also be supplied with a double-diaphragm system.

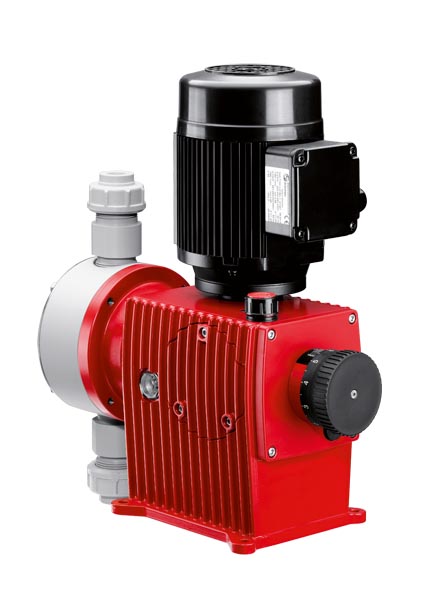

Motor-driven diaphragm dosing pump
Product: MEMDOS
Type: LB
Delivery rate: 144 l/h at 50 Hz – 172.8 l/h at 60 Hz against max. 10 bar
Material dosing head and valves: PP
Capacity adjustment: Stroke length manually adjustable 0 – 100 %
Electric drive: 400 V 3ph 50 Hz 0.37 kW – 460 V 3ph 60 Hz 0.44 kW
Electrical options:
without
Electric connection:
without cable
Suction valve: DN10 double-ball ceramic/FPM (ball/gasket)
Discharge valve: DN10 double-ball ceramic/FPM (ball/gasket)
Material suction connection: PP
Suction connection: Hose clamp connection 13/20
Material discharge connection: PP
Discharge connection: Hose clamp connection 13/20
