Description
Product Information

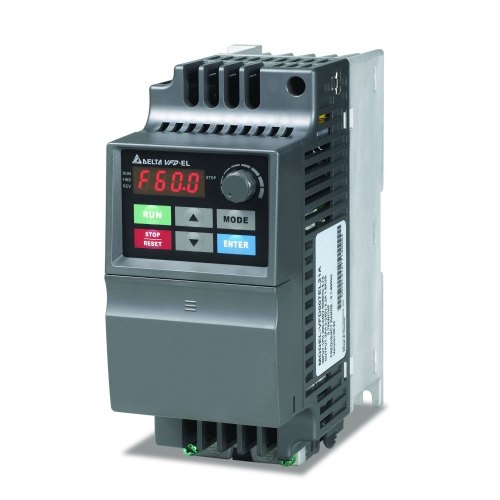

Delta VFD-EL Series
The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built-in keypad.
Highlights
- Output frequency: 0.1 ~ 600Hz
- 3 points adjustable V/f curve
- Built-in PID feedback control
- RFI-switch for IT mains
- Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
- Use RS-485 communication interface (RJ-45) with Modbus protocol
- Optional communication modules for multiple communication protocols, such as Profibus,
- DeviceNet, LonWorks and CANopen
- Complete protection function
| Power Rating | 1.5 kW |
| Phase | 1 |
| Supply Voltage | 230 V |
| Current Rating | 15.7 A |
| Output Frequency | 0 → 600Hz |
| For Use With | 1.5 kW AC Motor |
| Series | VFD-EL |
| IP Rating | IP20 |
| Field Bus Communication Type | RS485 ModBus |
| Control Panel | Yes |
| Ambient Temperature | -10 → +50°C |
| Filter Included | Yes |
| Overall Depth | 136mm |
| Overall Width | 100mm |
| Overall Length | 174mm |
