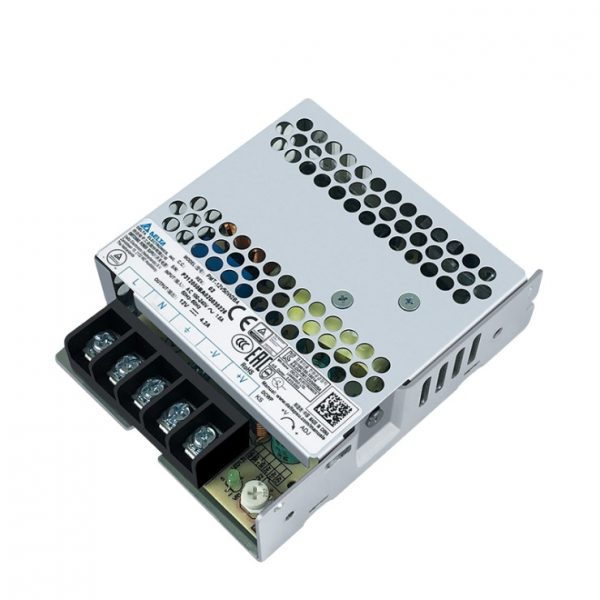

Description
Output Voltage
24V
Output Power
76.8W
Output Current
3.2A
Input Voltage Range
90-264Vac
Dimensions (L x W x H)
99 x 97 x 30 mm
3.90” x 3.82” x 1.18”
Unit Weight
0.216 kg (0.48 lb)
Highlights & Features
- Household appliance approvals to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Universal AC input voltage range
- No load power consumption < 0.3W
- Low profile design : 30mm height
- OVC III, Pollution Degree 3
- Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- High MTBF > 700,000 hrs per Telcordia SR-332
- Compliance with SEMI-F47
